CAP COMBI
3200 CL IND

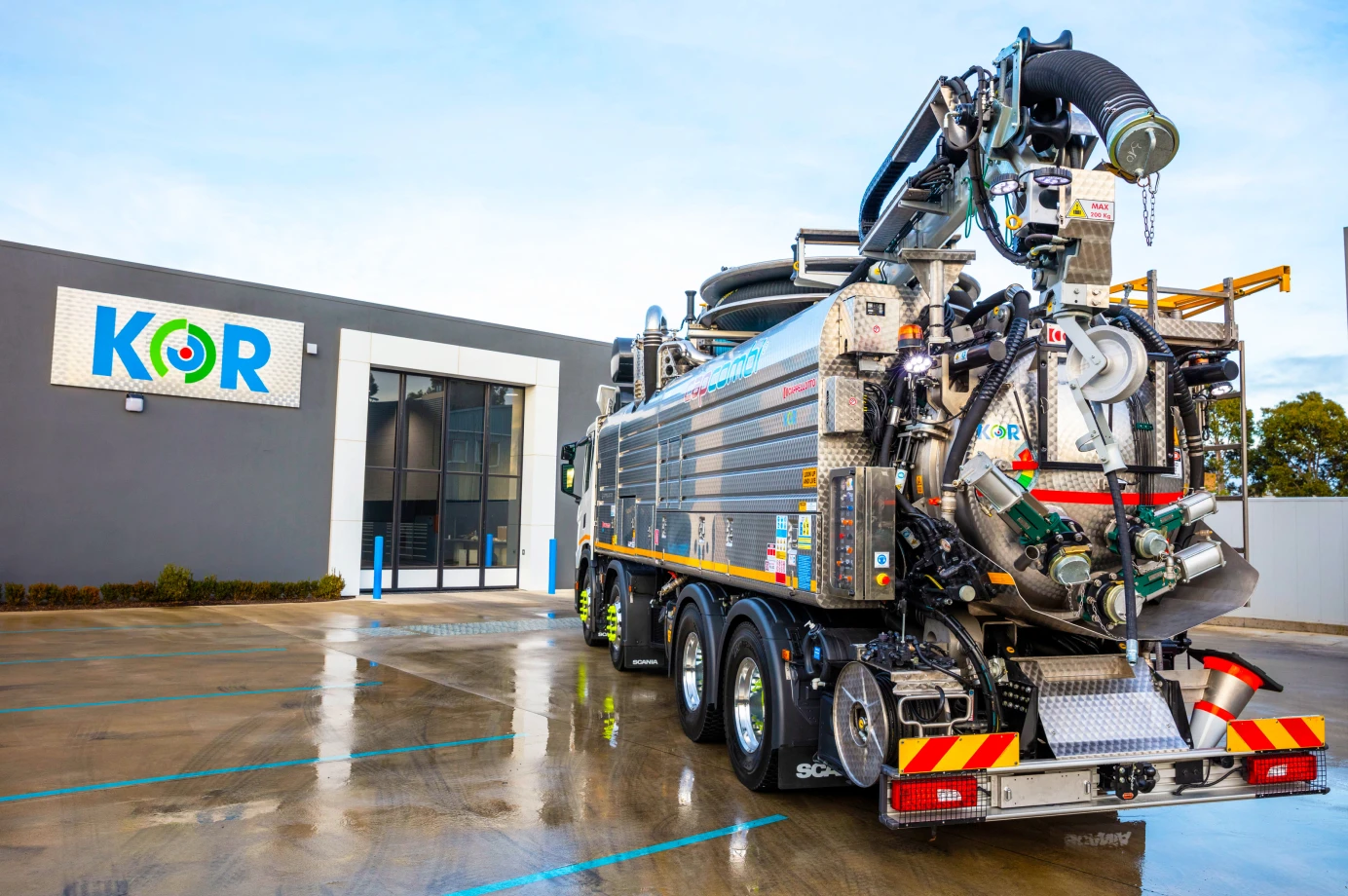

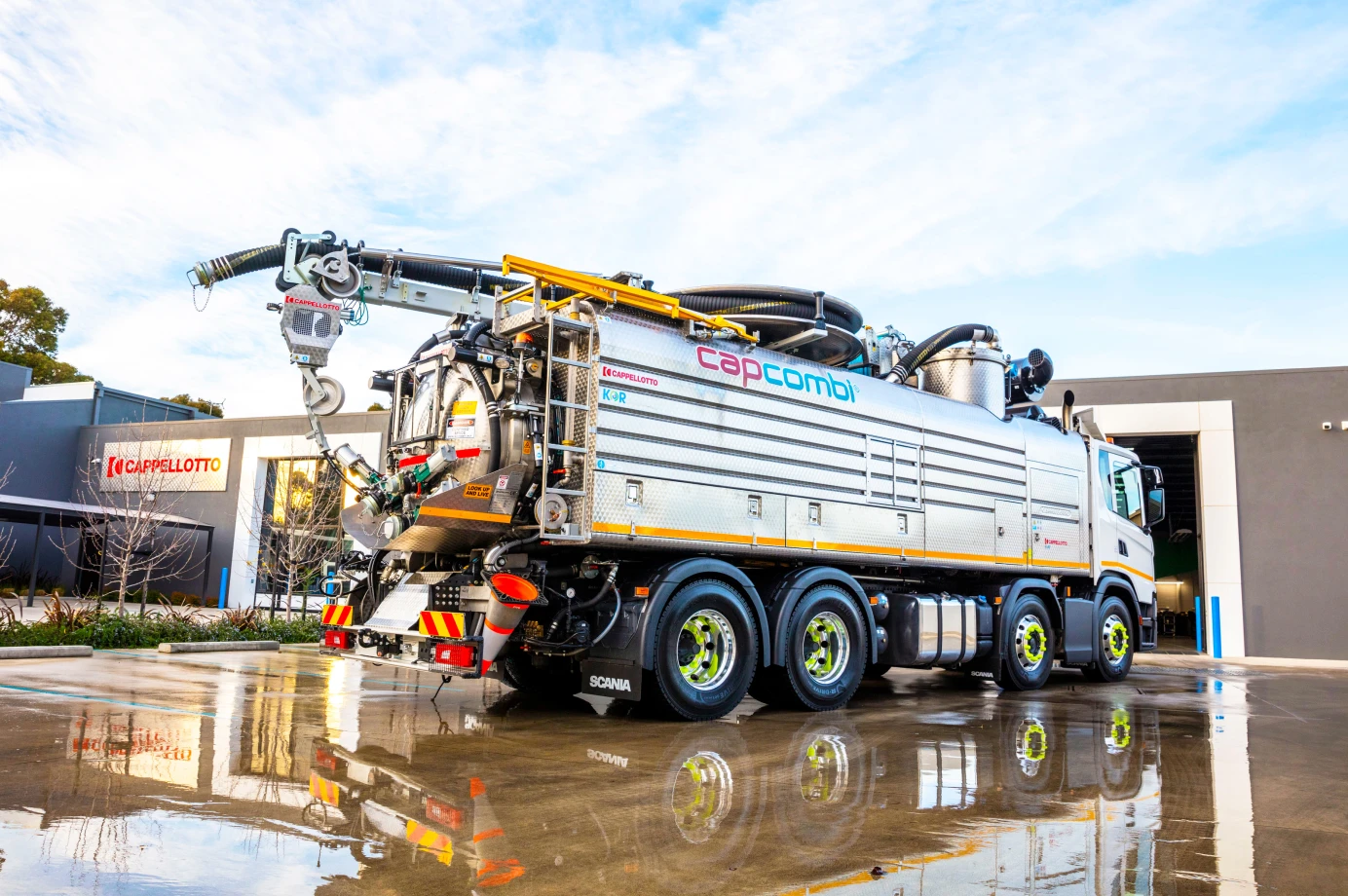

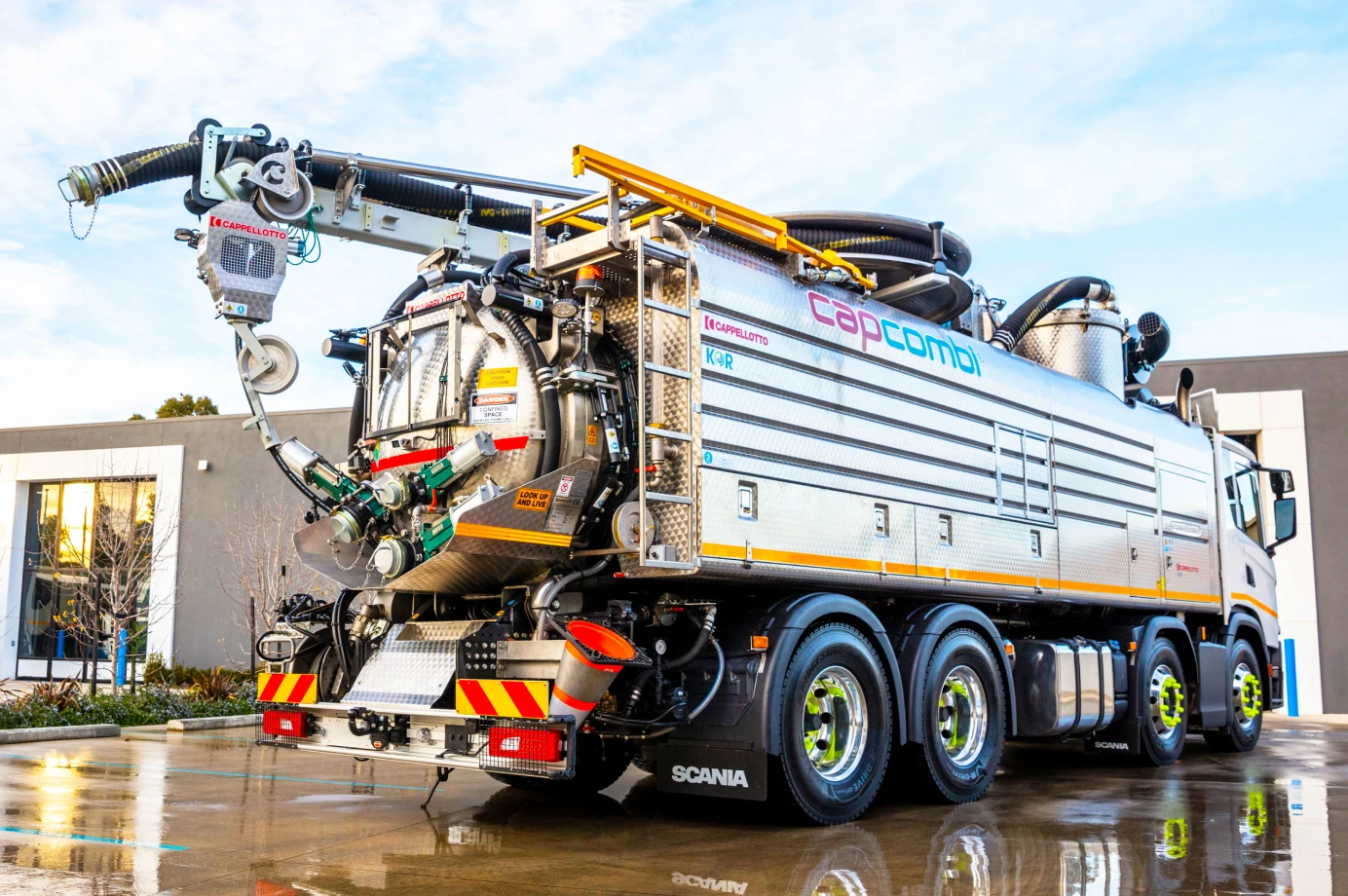

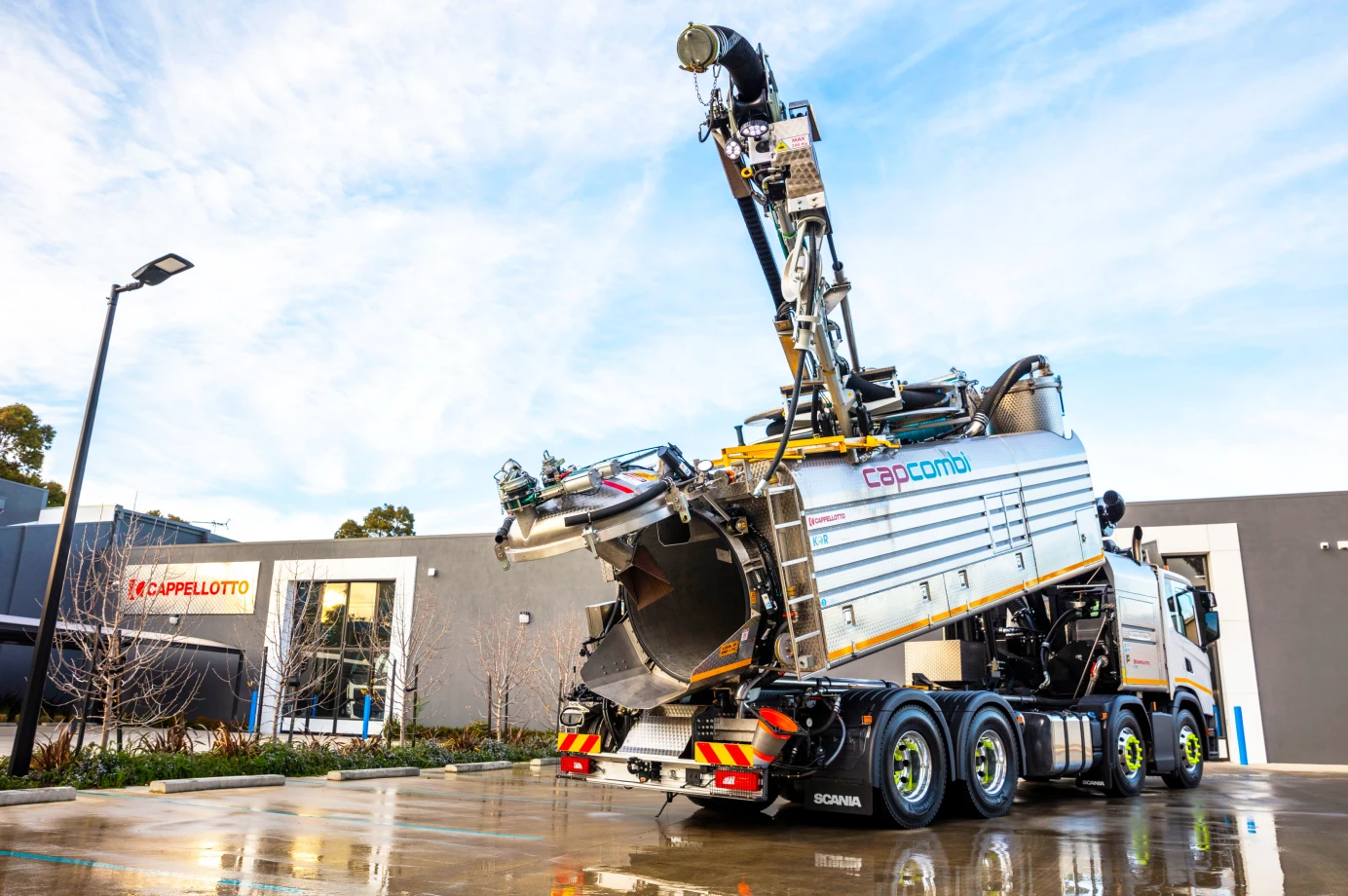

The Cappellotto CAP COMBI 3200 CL IND is highly versatile industrial vacuum combination unit.

Combining high efficiency vacuum performance, drain cleaning, hydro excavation and wet/dry vacuum capability, the CAP COMBI 3200 CL IND will find a place in your fleet maximising it’s diverse applications.

With KOR’s customer service commitment, your business will be supported for the life of the unit.

Application

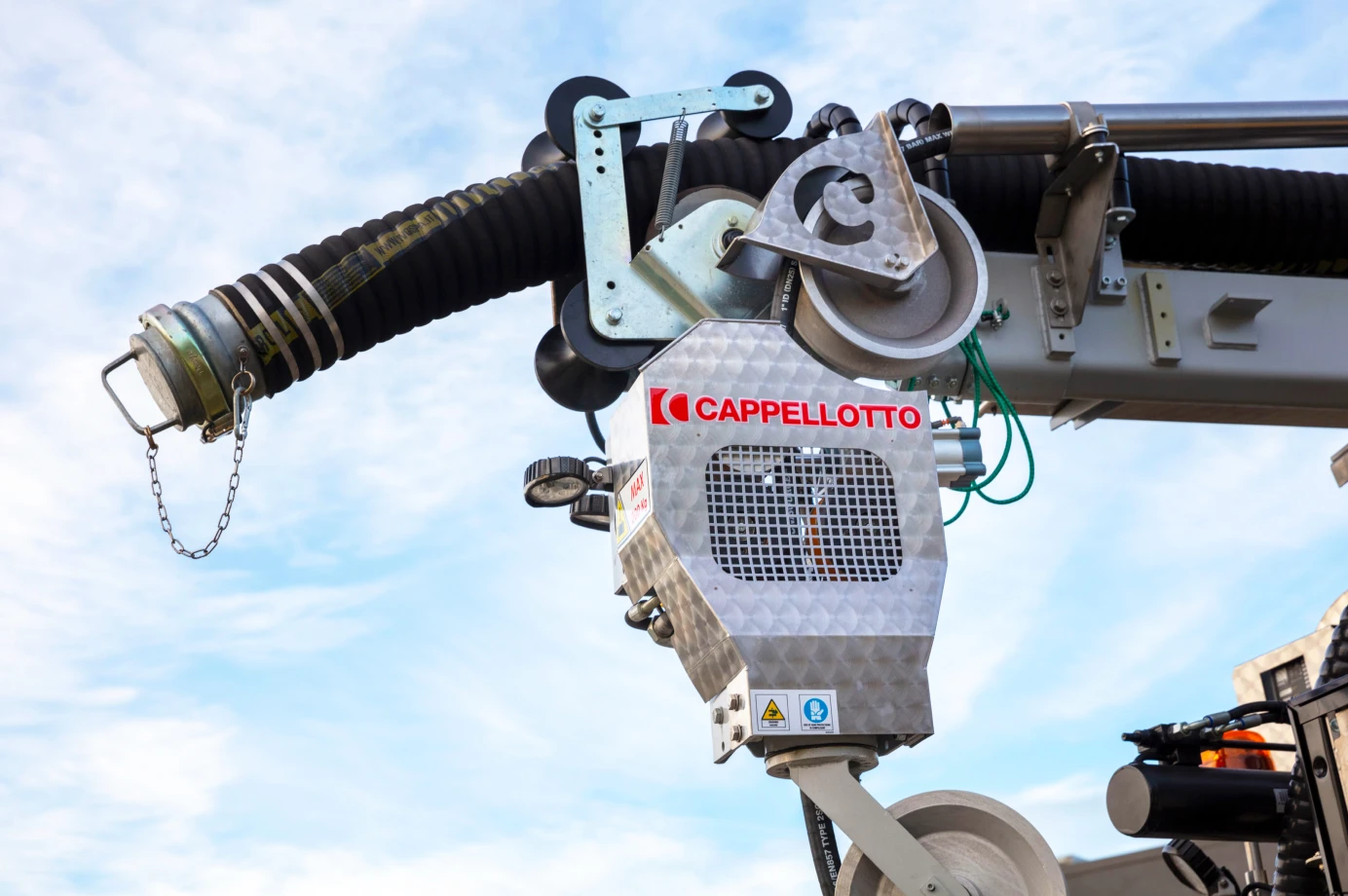

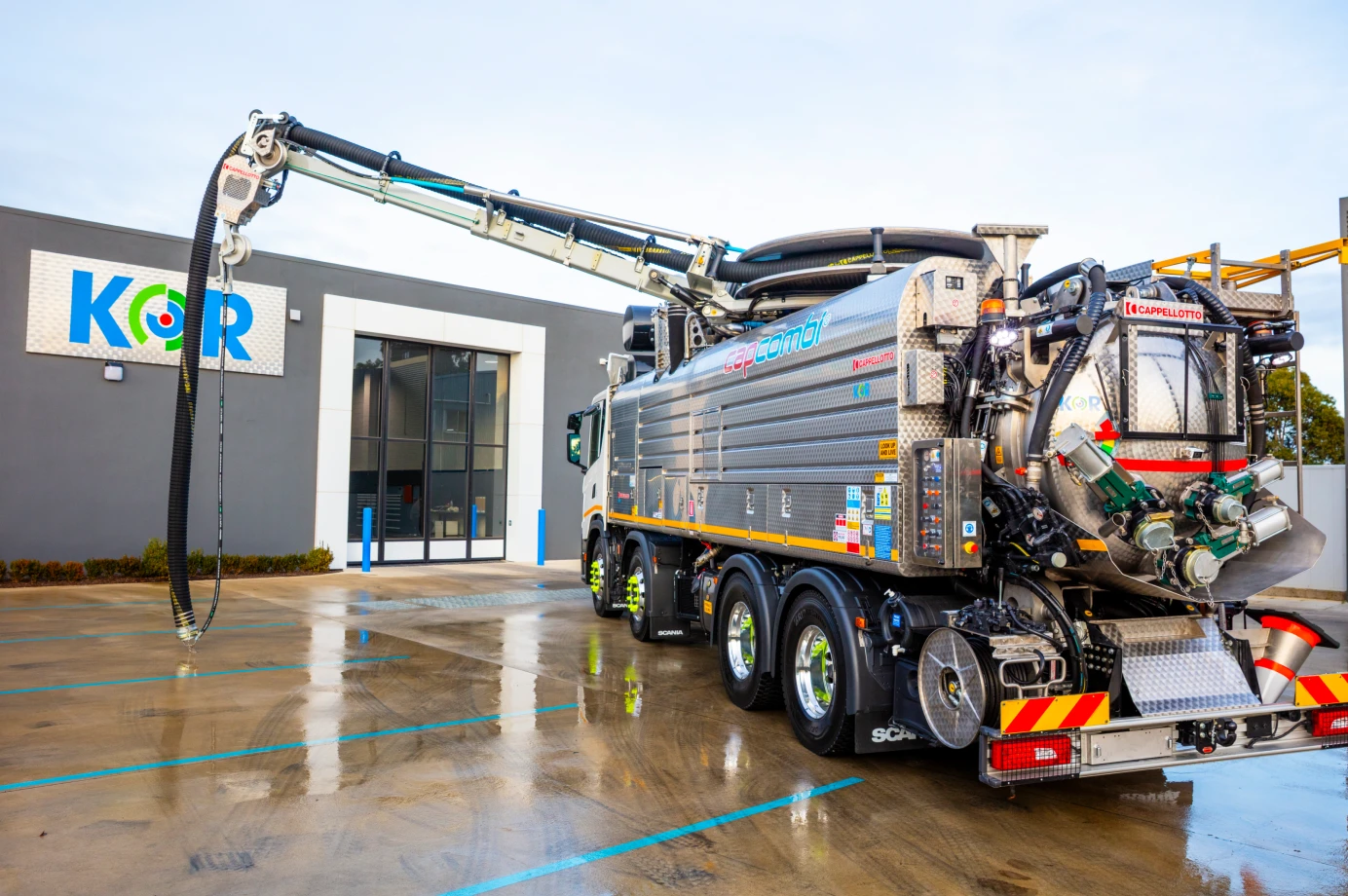

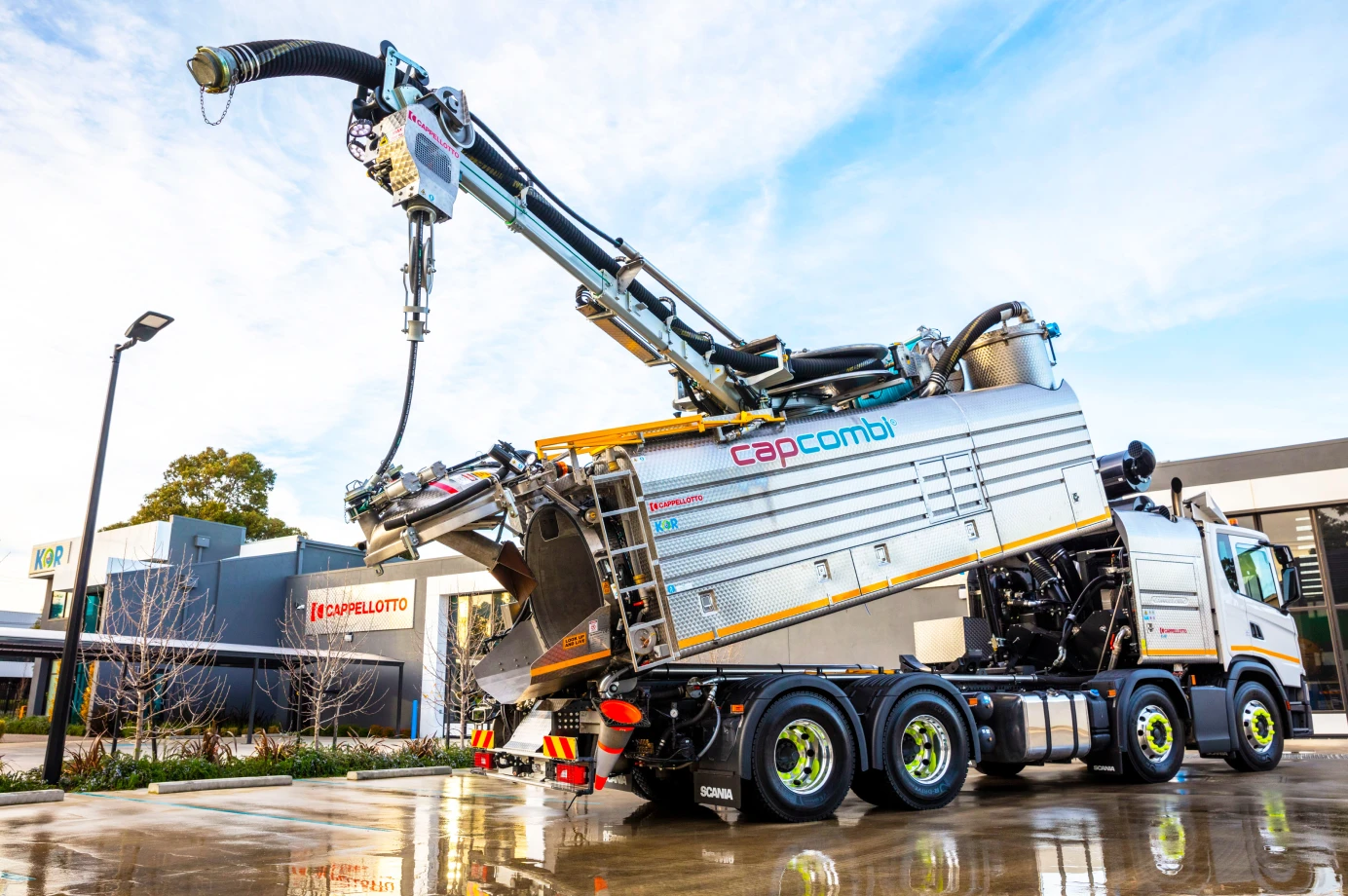

6.5m Boom Extension

6″ boom extension allows the operator to complete works in tight to reach spots in a 270 degree arch around the unit. This reach offers 20m of vacuum hose extension for hydro excavation and drain cleaning works.

Wet/Dry Industrial Vacuum

The CAP COMBI 3200 CL IND incorporates a dry baghouse suction system for dry vacuum applications. This, coupled with the flexibility to complete wet vacuuming maximises the versatility of the unit and allows your business to complete a greater scope of works.

6″ Hydro Excavation

With the 4,636m3/hr (2,728cfm) vacuum pump and 5,700ltr water tank, hydro excavation work can be completed efficiently and productively. With the extra reach boom extension and 20m length of vacuum hose, difficult to reach locations are accessible to complete non-destructive digging activity.

Specs and features

Variant

CAP COMBI 3200 CL IND

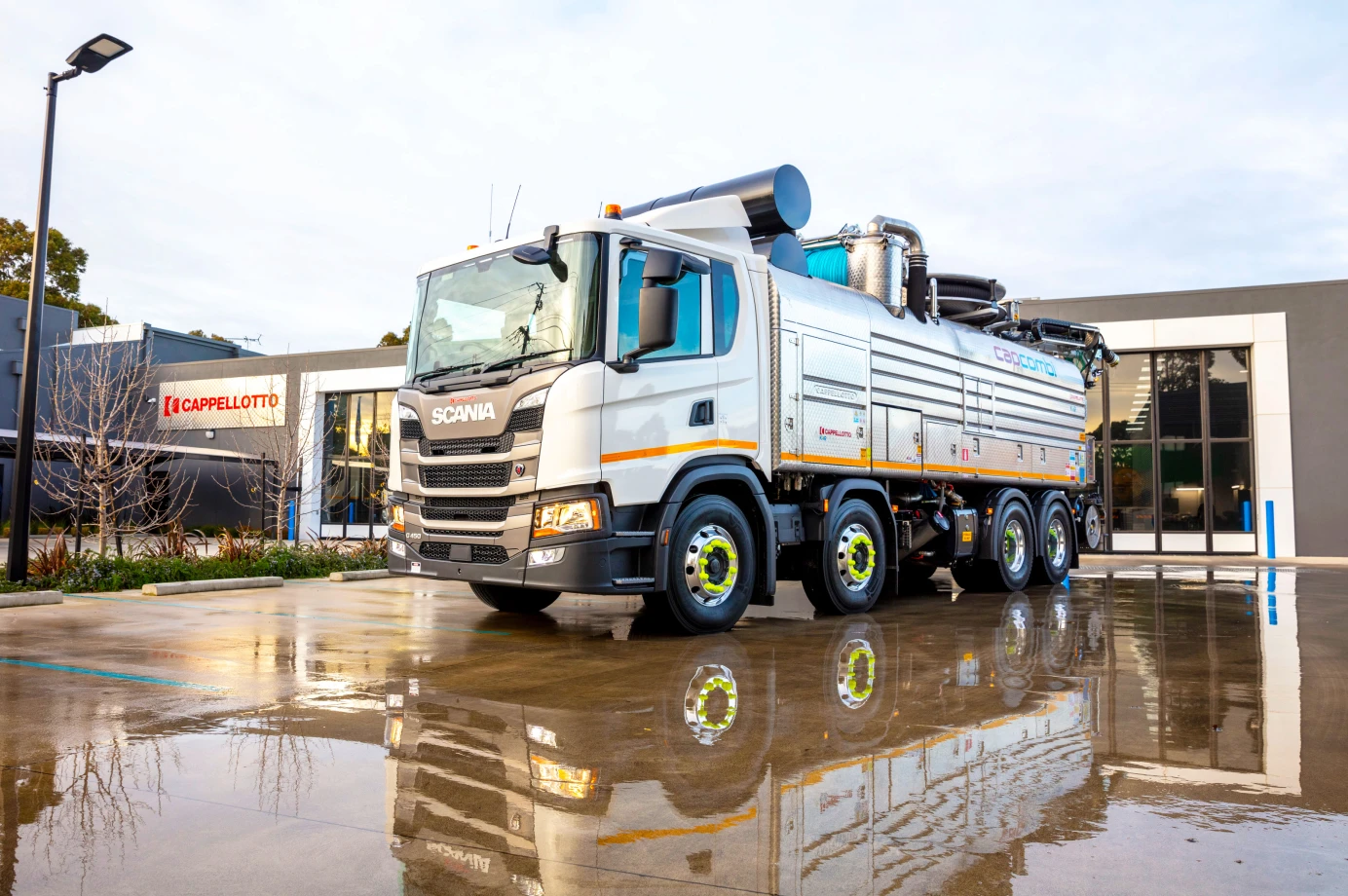

Chassis

Scania G450 8×4

Power (Hp)

450hp

Emissions

Euro 5

Wheelbase (Euro)

8×4

Turning Circle (Kerb to kerb)

21,864mm

Vacuum Pump

Hibon blower 4,635m3/hr (2,728cfm)

Vacuum Efficiency

Max. vacuum 95% (27″ Hg)

Water Pump

Uraca 346l/min @ 205 bar (2,973psi)

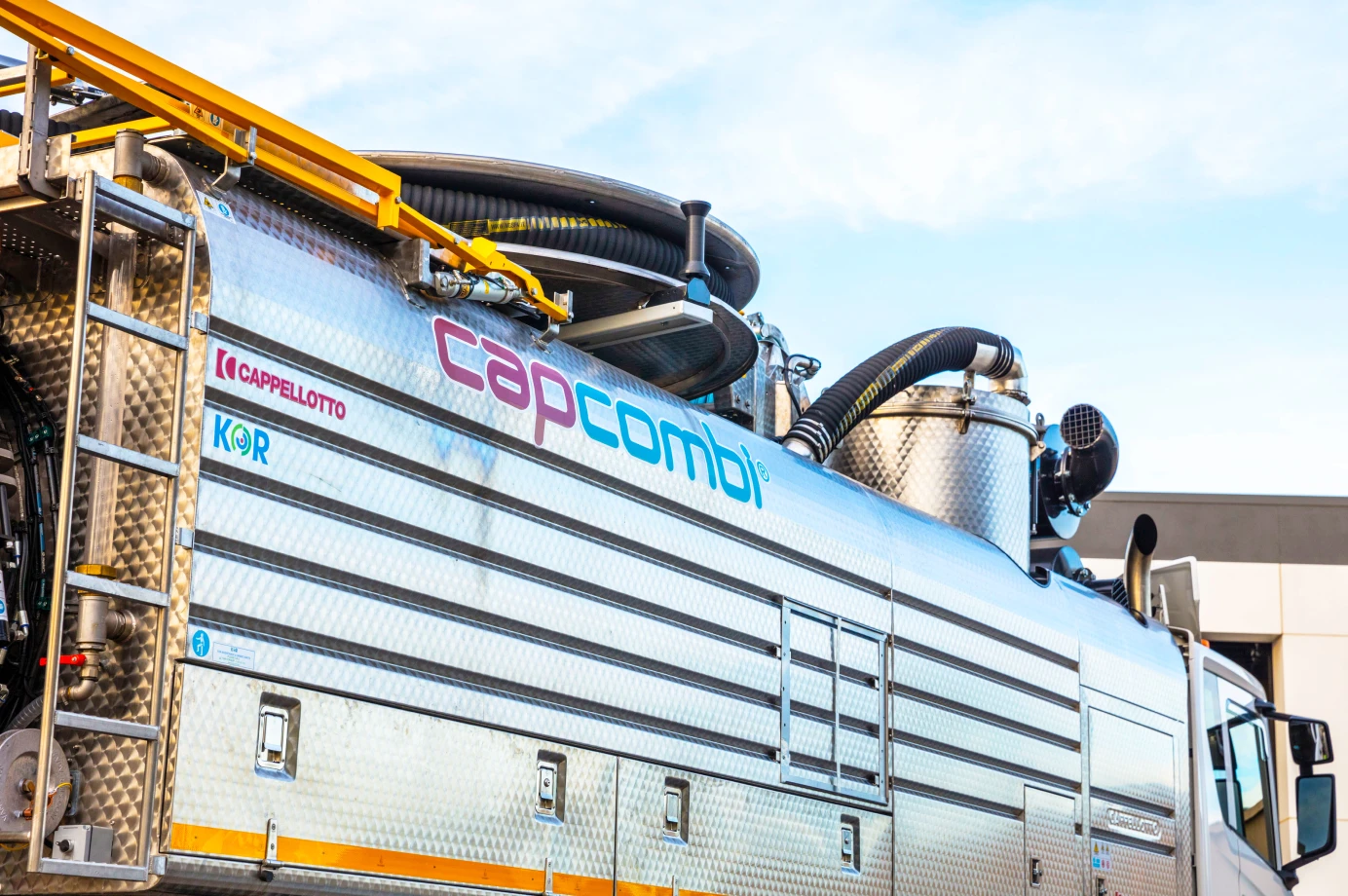

Sludge Tank

8,000 litre, 304 Stainless Steel

Water Tank

5,700 litre, 304 Stainless Steel

Hose Reel

Front mounted, 240m x 25mm (1″)

Body Control

Wireless with all functions including unloading

Sound Level

85 dB(A) at 1 metre within working RPM range and operational area

Hydro Excavation

UDOR 17 l/min @ 280bar (4,061 psi)

PTO

V-belt and pneumatic clutches for highest efficiency power transmission

Dry Vacuum

Dry baghouse system with automatic cleaning and emptying system back to tank

Wet Vacuum

Wet filtration cyclone with overflow shut-off device
